产品规格

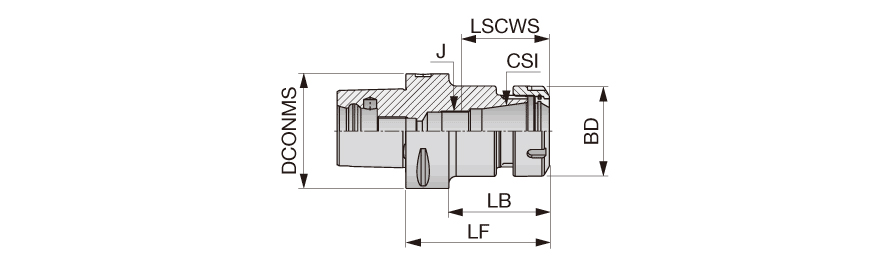

| Shank Size (SS) | C8 | 应用 | | 平面接触接口 | |
| Connection Size (CSI) | ER32 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Diameter (BD) | 50 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Length (LB) | 130 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Connection Diameter Machine Side (DCONMS) | 80 mm | 测量方式 | Metric |
| Shank Length (LS) | 48 mm | 刀体材质 | Steel |
| Functional Length (LF) | 160 mm | 单位 | M |
产品特性

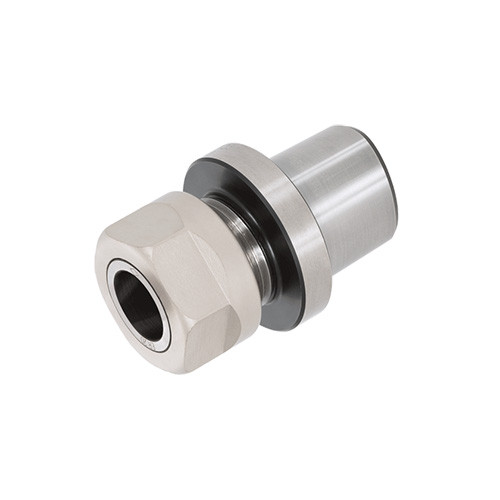

| 系列描述 | TungCap ER弹簧夹头刀柄（DIN6499） | 系列名称 | C-ER collet chuck |
| 备注 | 适用于7MPa冷却液。 不包含扳手 | 品牌 | Tungaloy |
| COO | ISRAEL |
Shipping Info
包装重量
3.4050
名字
弹簧筒夹夹头
系列名称
C-ER collet chuck
品牌
Tungaloy
