产品规格

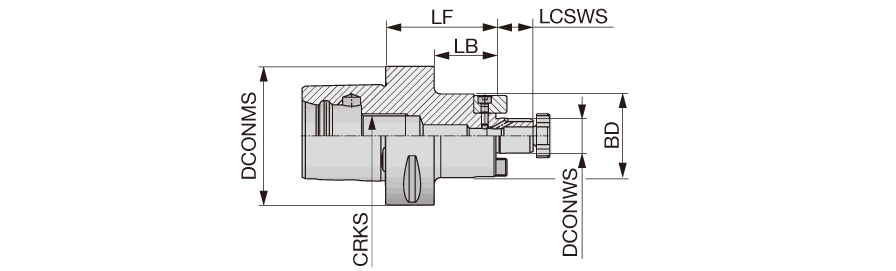

| Connection Diameter Machine Side (DCONMS) | 40 mm | Connection Retention Knob Thread Size (CRKS) | M14 |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | 应用 | | 平面接触接口 | |
| Shank Size (SS) | C4 | Tool Type | ISO 26623-1 (CAMFIX, CAPTO) |
| Body Length (LB) | 12 mm | 测量方式 | Metric |
| Body Diameter (BD) | 38 mm | 刀体材质 | Steel |
| Overall Length (OAL) | 32 mm | 单位 | M |
产品特性
| 系列描述 | TungCap套式铣刀柄（带冷却液喷嘴） | 系列名称 | C-SEM shell mill |
| 备注 | 适用于7MPa冷却液。 不包含扳手 | 品牌 | Tungaloy |
| COO | ISRAEL |
Shipping Info
包装重量
0.4300
名字
Shell Mill Holders
系列名称
C-SEM shell mill
品牌
Tungaloy
