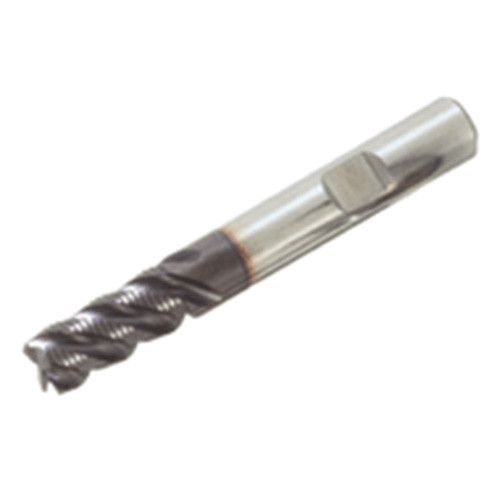

TECR100B4M-20C10-72R10 AH725
产品规格

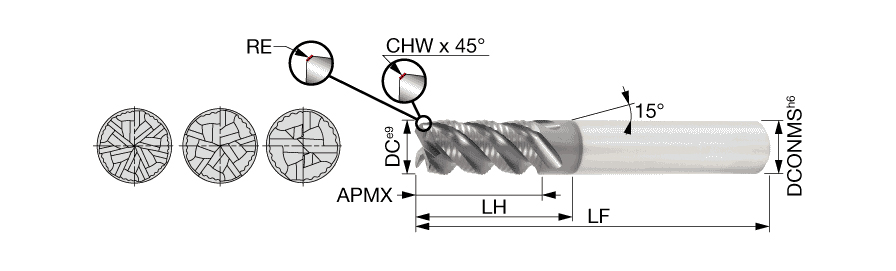

| Cutting Diameter (DC) | 10 mm | 应用 | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 20 mm | 等级 | AH725 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide center cutting endmills 90 |
| 切削刃材质 | Carbide | Maximum Feed per Tooth (fz(max)) | 0.18 mm/tooth |
| 涂层 | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Flute Count (NOF) | 4 | 刀体材质 | Carbide |
| 柄部形式 | Round | 测量方式 | Metric |
| 端部形状 | Corner Radius | 单位 | M |
| 适用材料 | | 钢 | 不锈钢 | 铸铁 | 硬材料 | 黑色金属 | 高温合金 | |
产品特性
| 系列描述 | 4-7齿粗加工立铣刀，45°螺旋角 | 系列名称 | TECR-B4,5,7M |
| COO | ISRAEL | 品牌 | Tungaloy |
Shipping Info
包装重量
0.0000
名字
Square & Corner Radius End Mills
系列名称
TECR-B4,5,7M
品牌
Tungaloy
