产品规格
| 适用材料 | | 硬材料 | | 最小切削深度 | 0.05 mm |
| 应用 | | 刀片 | | Depth of Cut Maximum (APMX) | 0.4 mm |

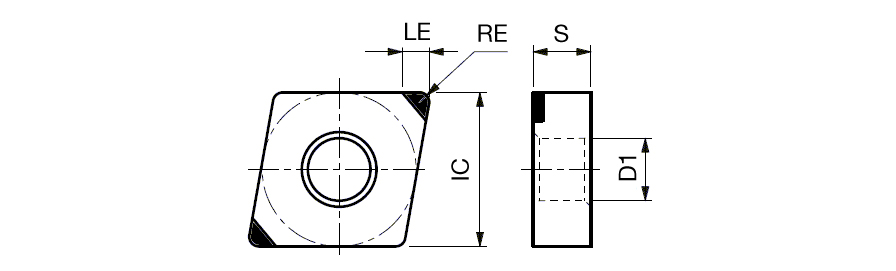

| Corner Radius (RE) | 0.8 mm | 最小车削进给(ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 12.9 mm | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 12.7 mm | 断屑槽型 | MW-CBN |
| 切削刃材质 | PCBN | 测量方式 | Metric |
| 涂层 | TiAlN | 刀体材质 | Carbide |
| 等级 | BXA20 | Cutting Edge Effective Length (LE) | 3.1 mm |
| Fixing Hole Diameter (D1) | 5.16 mm | 单位 | M |
| Tool Type | Turn Negative Inserts |
产品特性
| 系列描述 | 负后角，M/G级，80度菱形CBN刀片 | 系列名称 | 2QP-CNM/GA |
| 备注 | The first letter "T" of designation means 10 pieces per package. The last letter of designation means Edge preparation (EP) as below. Without letter, SR: Standard EP F: Sharp edge E: EP for preventing vibration and for suppressing work deformation L: EP for reducing flank wear LF: EP for reducing burrs LC: EP for reducing crater wear LT, H, HC: EP for reducing fracture FW, MW, W, WL, WJ, WG: Wiper | 品牌 | Tungaloy |
| COO | JAPAN |
Shipping Info
包装重量
0.0000
名字
Turning Indexable Inserts
系列名称
2QP-CNM/GA
品牌
Tungaloy
