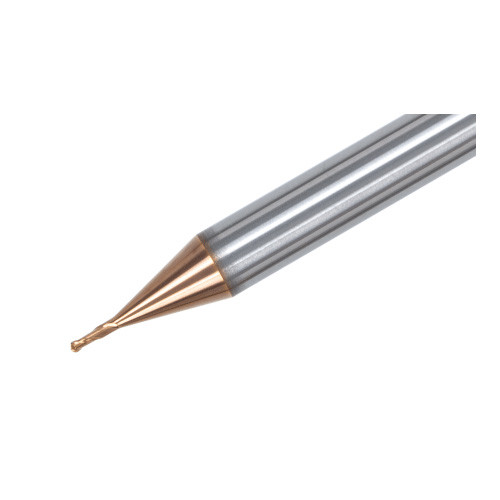

TEB010A2-010/10C4H-50 AH3005
2 flute ball nose endmill, 30 deg helix angle, long neck Type,for hardened steel
产品规格

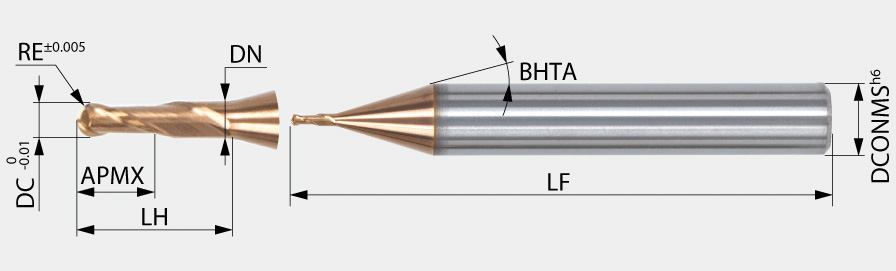

| Cutting Diameter (DC) | 1 mm | 应用 | | Profile Milling | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 1 mm | Neck Diameter (DN) | 0.95 mm |
| Overall Length (OAL) | 50 mm | 等级 | AH3005 |
| Flute Count (NOF) | 2 | 刀体材质 | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | 测量方式 | Metric |
| 柄部形式 | Round | 单位 | M |
产品特性
| 系列描述 | 2 flute ball nose endmill, 30 deg helix angle, long neck Type,for hardened steel | 系列名称 | TEB-A2H |
| COO | SOUTH KOREA | 品牌 | Tungaloy |
Shipping Info
包装重量
0.0000
名字
Ballnose End Mills
系列名称
TEB-A2H
品牌
Tungaloy
